ORD219 Reed Switches

Reed Switch ORD219 features a glass length of 12.0mm and diameter of 2.0mm. Rated power 10 W, Switching voltage 100 VDC, Switching current 0.5 Amp DC.

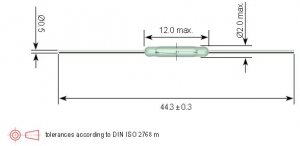

*Overall Length : 44.3 mm (1.744 inches)
*Glass Length Max. : 12.0 mm (0.472 inches)
*Glass Dia. Max. : 2.0 mm (0.078 inches)
*Lead Dia.: 0.5 mm (0.019 inches)
*Contact Form : 1A (SPST) Normally Open (N.O.)
*Pull-In Range : 10-40 AT
*Rated Power Max. : 10W/100VDC/0.5 Amp DC

General purpose, industrial, test and measurement (ATE)
