ORD624 Reed Switches

Miniature Reed Switch ORD624 featuring high performance. Glass length of 14.0mm and diameter of 2.2mm. Rated power 10 W, Switching voltage 200 VDC, Switching current 0.5 Amp DC.

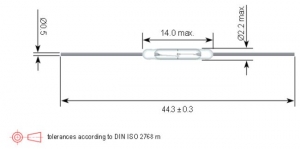

*Overall Length : 44.3 mm (1.744 inches)
*Glass Length Max. : 14.0 mm (0.551 inches)
*Glass Dia. Max. : 2.2 mm (0.086 inches)
*Lead Dia.: 0.5 mm (0.019 inches)
*Contact Form : 1A (SPST) Normally Open (N.O.)
*Pull-In Range : 7-30 AT
*Rated Power Max. : 10W/200VDC/0.5 Amp DC

Automotive, household appliance, control equipment, telecommunications, instrumentation
